Dahanu, Maharashtra
Capacity: 500 MW Type: Coal Based
Adani Dahanu Thermal Power Station (ADTPS), consisting of two units of 250 MW, commenced its commercial operations in January 1996. Recognized with innumerable awards, this power plant is known for its distinctive features that set it apart from others in terms of technological innovation, superior performance, and continuous sustainability for a longer period. ADTPS was acquired by Adani Power Limited on 30th September 2024. It is located around 120 km north of Mumbai along Mumbai-Ahmedabad rail line.

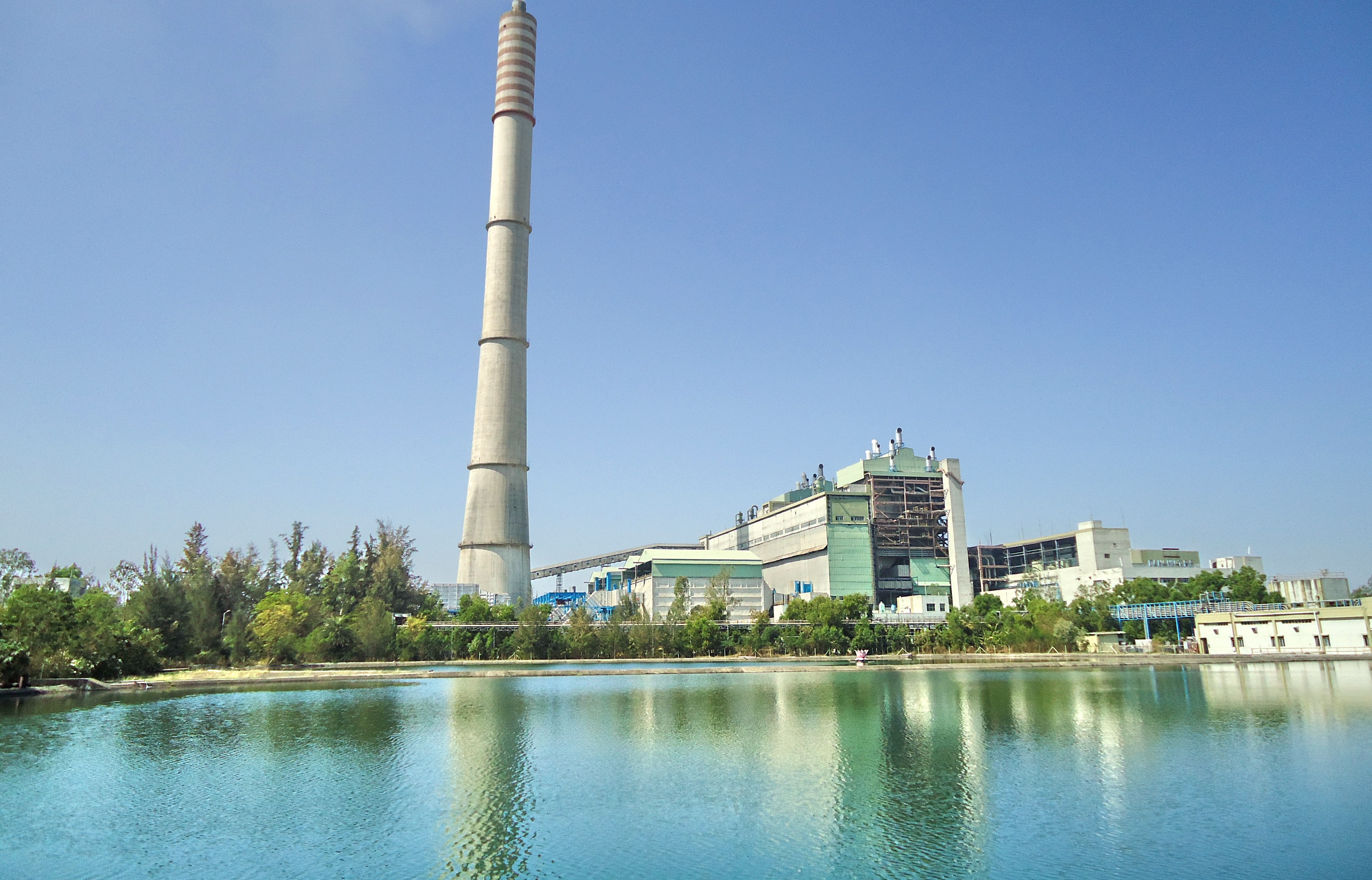

Location
City: Dahanu
District: Palghar, State: Maharashtra
Nearest State Highway/ Road: 20 km from Mumbai-Ahmedabad-Delhi NH8
Nearest Airport: Chhatrapati Shivaji Maharaj International Airport
Nearest Railway Station: Dahanu

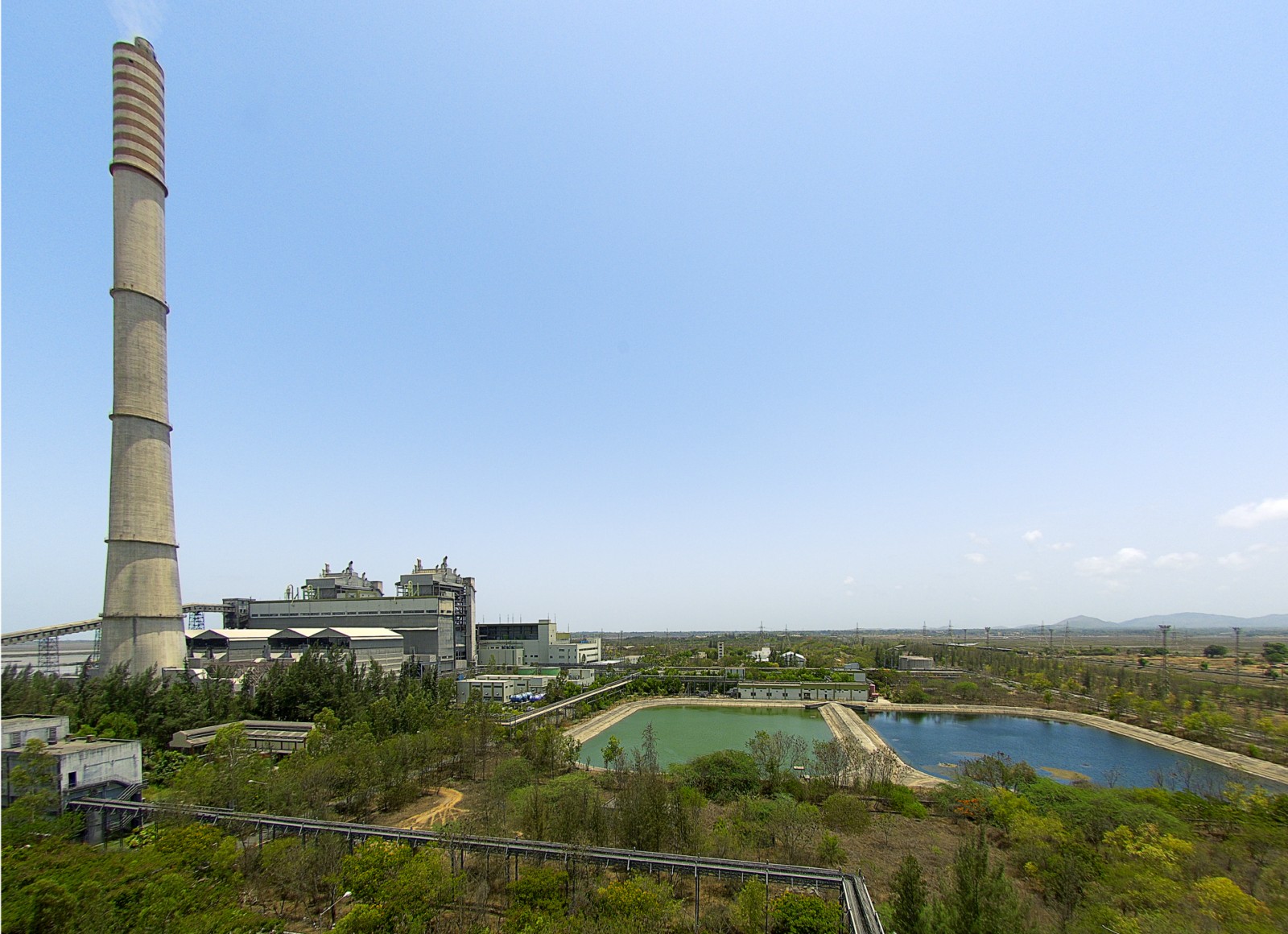

Plant Details
Adani - Dahanu Thermal Power Station has implemented integrated management systems (IMS) in its processes and is certified for quality management, environment management, occupational health and safety assessment studies, social accountability management, information security management, energy management and accreditation for ADTPS coal & Ash testing laboratory. The plants utilise a mix of Indian coal and imported coal as fuel.
Design and development

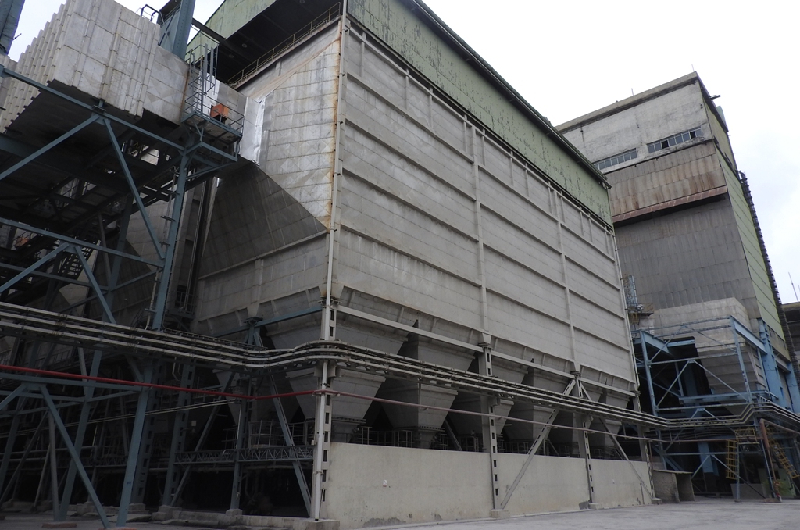

Complete automatic control & monitoring of the three cylinders reheat condensing turbine, boiler and auxiliaries by Digital Distributed Control, Monitoring, and Information System (DDC-MIS) to maintain trouble free output. Highly advanced Supervisory Control and Data Acquisition (SCADA) system for complete centralized control over transmission and distribution. The CW Systems are equipped with concrete volute pumps to facilitate the smooth functioning of Sea water based once through condenser cooling water system. An Electronic Electrostatic Precipitator (ESP) of 99.9% efficiency to collect fly ash with In-house developed Ammonia dosing system to improve collection efficiency. Flue Gas Desulfurization (FGD) Unit I and II commissioned in October 2007.
Power evacuation and Power purchase agreements
Power Purchase Agreement
ADTPS supplies power under a long-term Power Purchase Agreement (PPA) to the Mumbai power distribution circle of Adani Electricity Mumbai Limited (AEML).

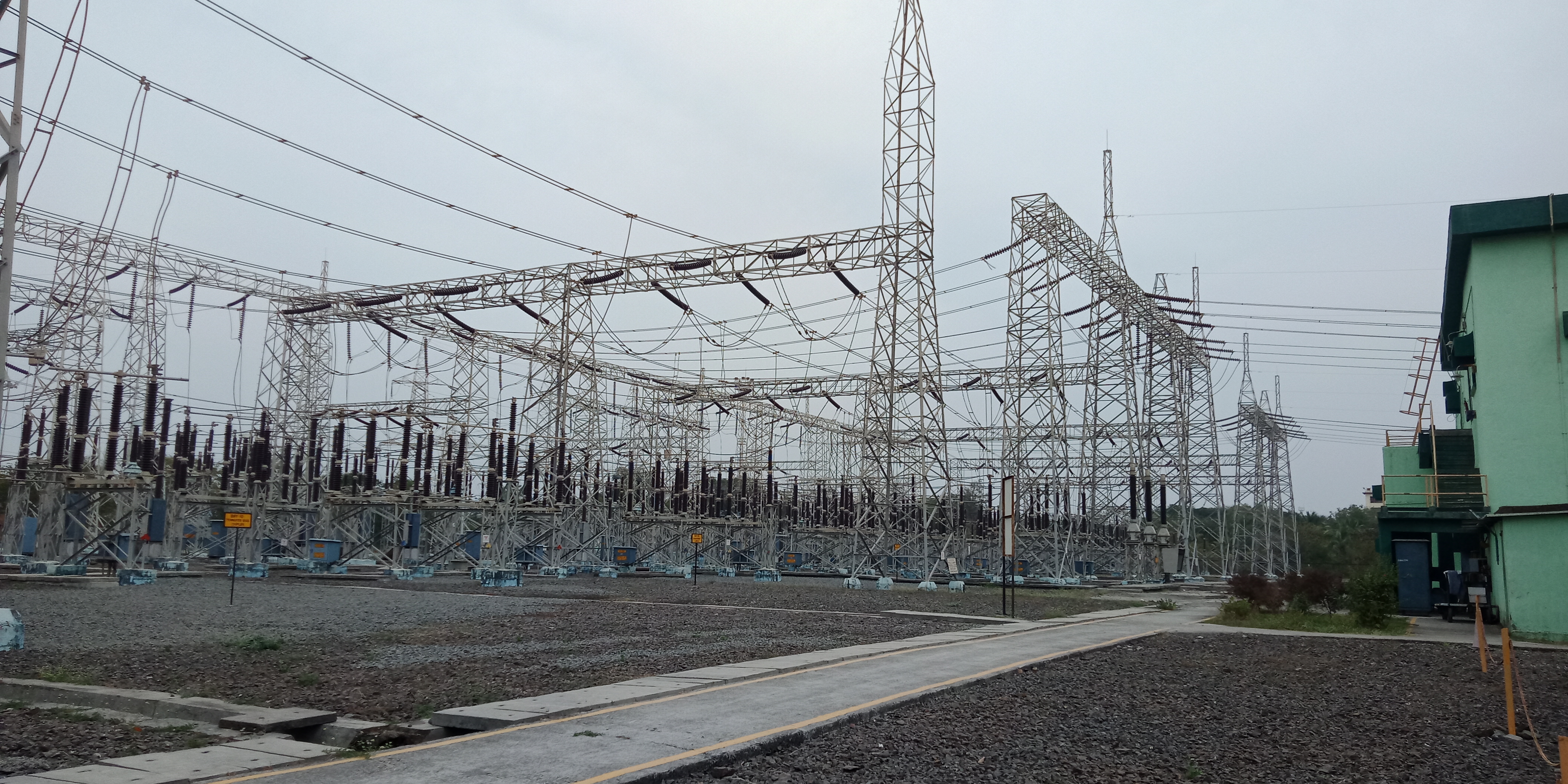

Power Evacuation
ADTPS is directly connected with receiving stations at Mumbai through AEML owned transmission lines. It is also directly connected with the Main grid. At full capacity, the ADTPS can produce 12 MU per day.
Benchmarks, Achievements
Benchmarks:
ADTPS has received Copyright for three innovative works from Copyright Office of Government of India, New Delhi.
- Reduction in Overhauling Time - Implementation of Work procedure has ensured considerable reduction in overhauling period to 15 days. Thereby saving Generation revenue equivalent to at least 10 to 15 days.
- Energy Deviation Report - An effective tool for energy consumption monitoring and optimization. This helps operation personnel to utilize energy efficient equipment to cater economical generation.
- Improvement of Coal Mill Performance by Auto Operation - Software developed by ADTPS team by studying the correlation between air and coal flow. This logic has helped to avoid undue variation in load and other process parameters even during very heavy rain.
Achievements:
- World's First Power Plant to get ISO 50001: 2018, Certification for Energy Management
- ISO 9001:2015 - Quality Management System
- ISO 14001:2015 - Environment Management System
- ISO 45001:2018 - Occupational health & safety Assessment series
- ISO 50001:2018 - Energy Management System
- SA 8000:2014 - Social Accountability Management System
- ISO 27001:2013 - Information Security Management System
- ISO 55001:2014 - Asset Management System
- ISO 22301:2019 - Business Continuity Management System
- ISO 26000:2010 - SR: Social Responsibility assessment & compliance.
- ISO/IEC 17025:2017 - Accreditation for ADTPS Coal & Ash testing laboratory by National Accreditation Board of Laboratory (NABL)
- ISO 46001:2019 - Water Efficiency Management System.
- Single Use Plastic Assessment Certificate
- Zero Waste to Landfill certificate
Fuel
ADTPS requires, on a full load basis, approximately 2.5 million tons of coal per annum. The plants utilise a mix of Indian coal and imported coal as fuel. The indigenous fuel is received from SECL (Korba) and imported from Indonesia. ADTPS has made remarkable achievements on parameters of Auxiliary power consumption (APC), Specific Oil Consumption & DM water consumption by consistently maintaining them lower than the national average for a generation unit of this size.
Water

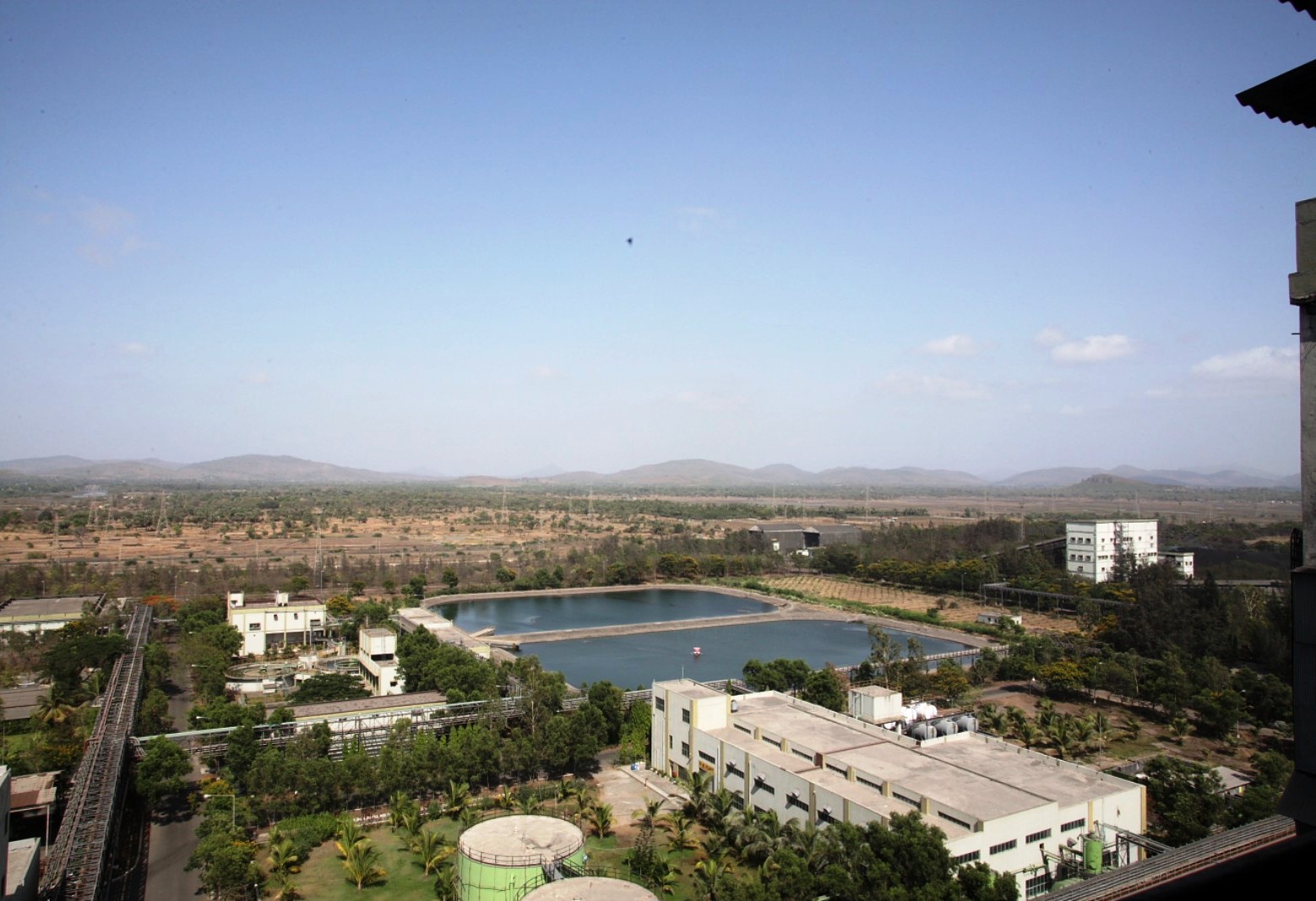

The Irrigation Department, Government of Maharashtra supplies fresh water from the Surya Prakalpa Reservoir to the ADTPS. In addition, ADTPS also uses sea water for condenser cooling.

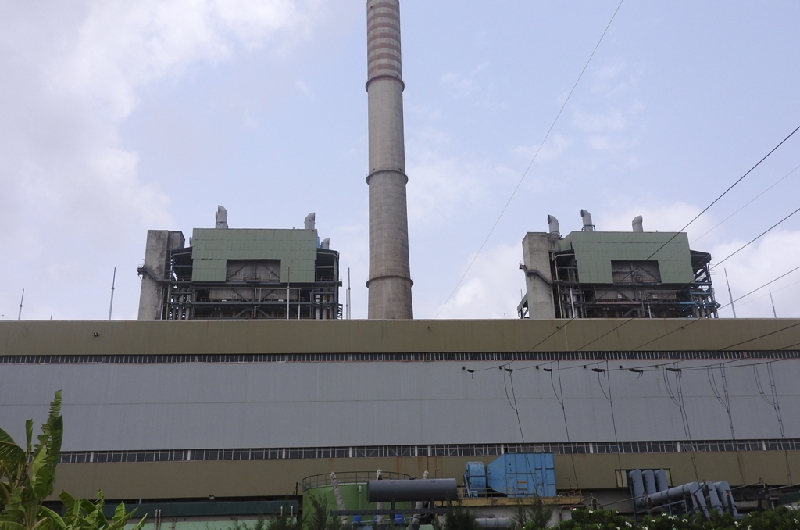

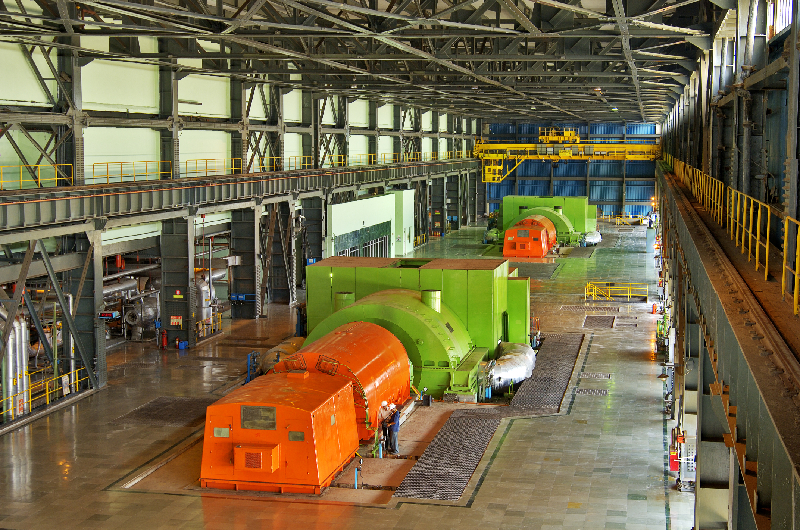

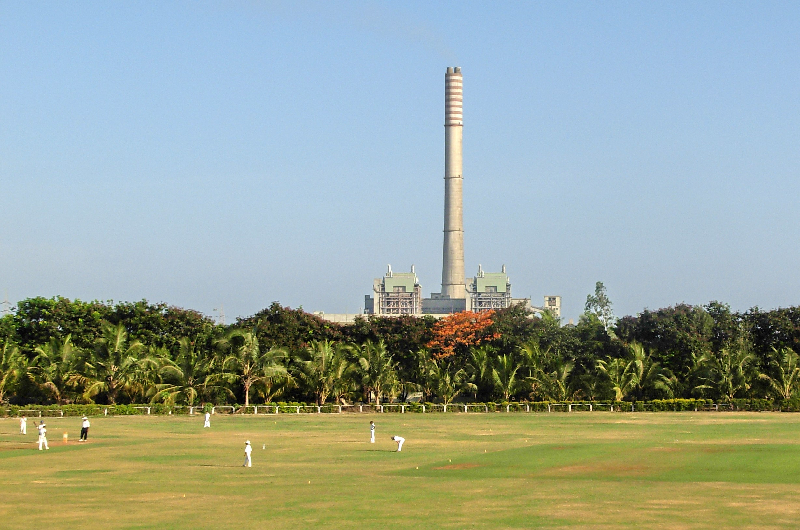

Hi-Tech Infrastructure
)
)
)
)
)
